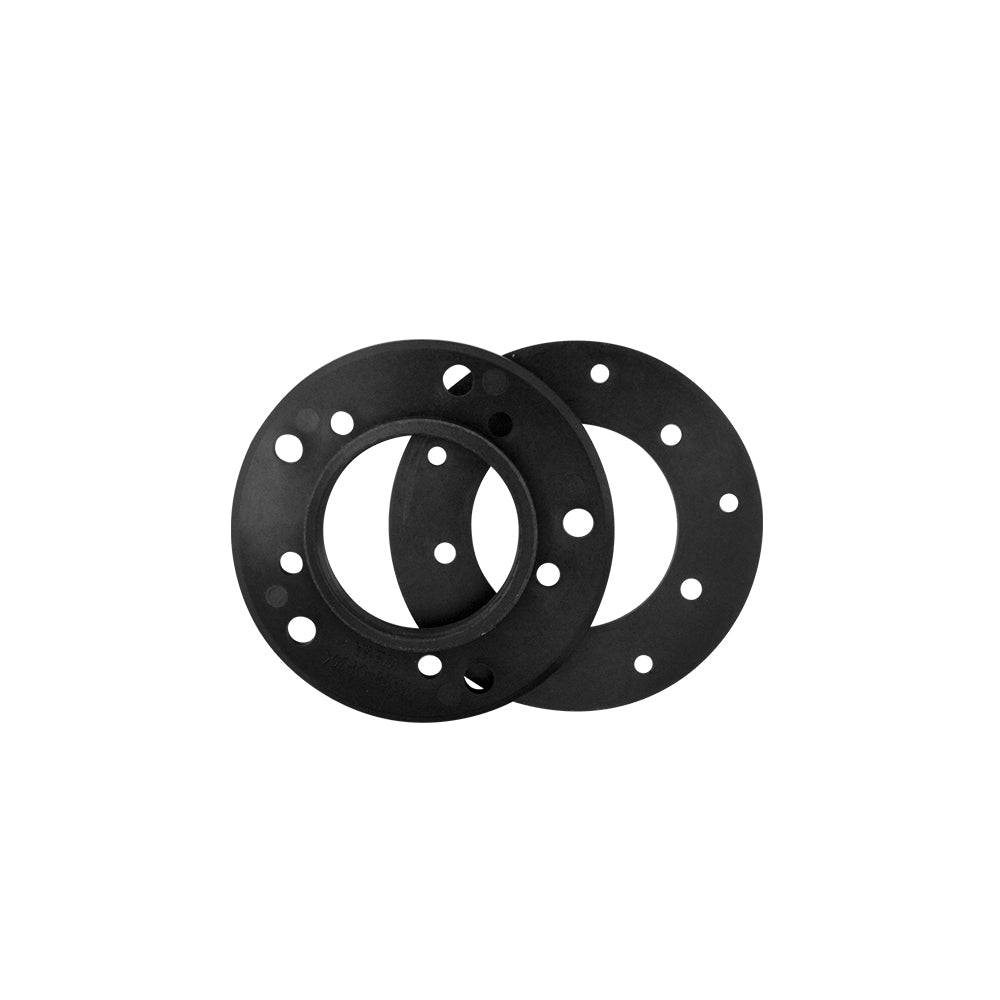

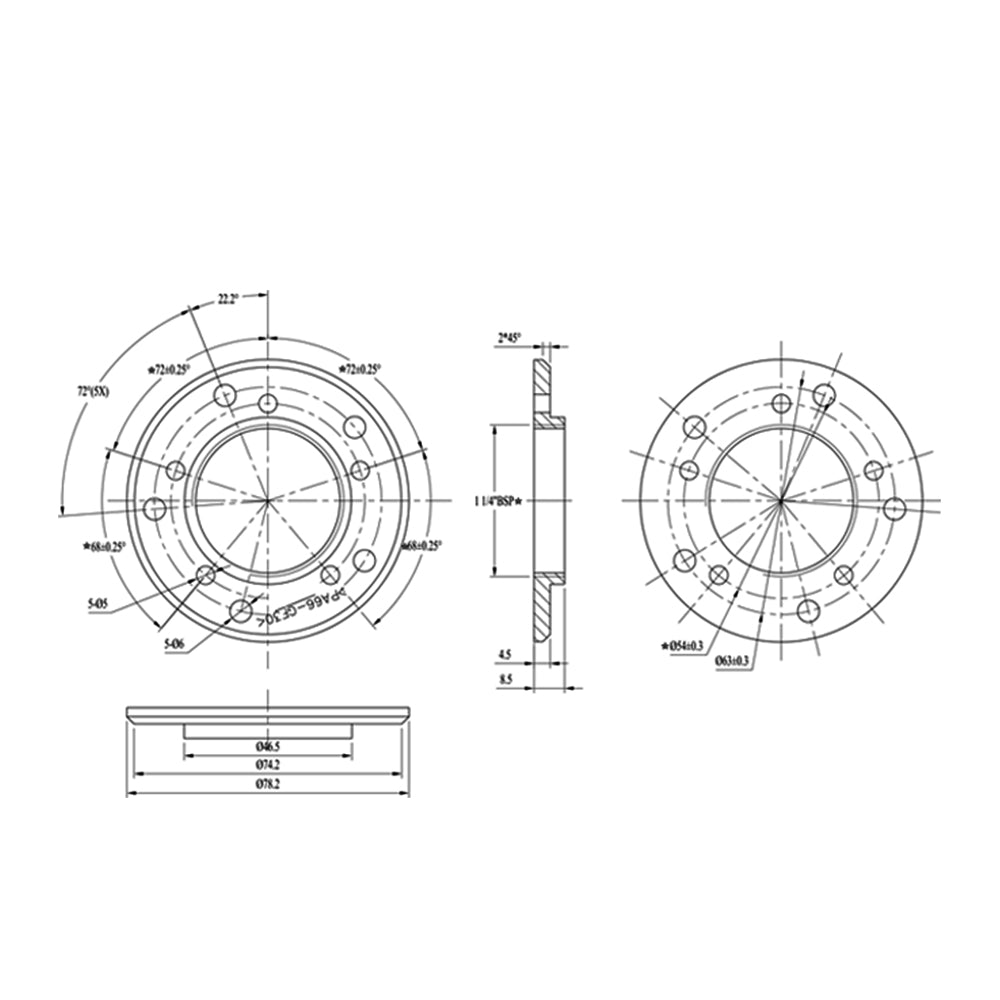

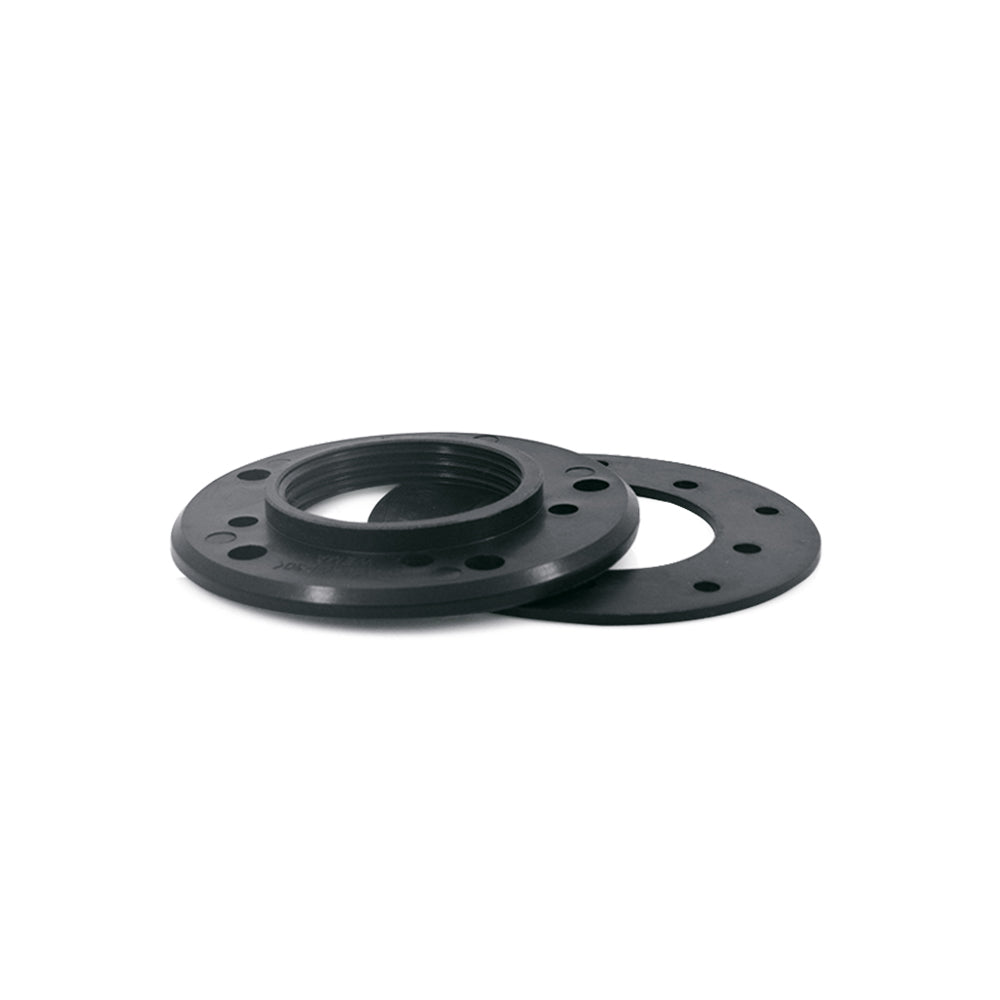

GenuineMarine-THALASSA 6/7.5 Inch S3 Lever Sensor + 316 Stainless Steel/ABS Black Plastic Flange S3 Lever Sensor & Flange Set for Yacht Boat RVs

Store reminder:

The sensor specifications have U.S. and European regulations

This product adopts the principle of magnetic field to control the contact of the dry reed switch, which has the characteristics of long life and anti-seismic and explosion-proof

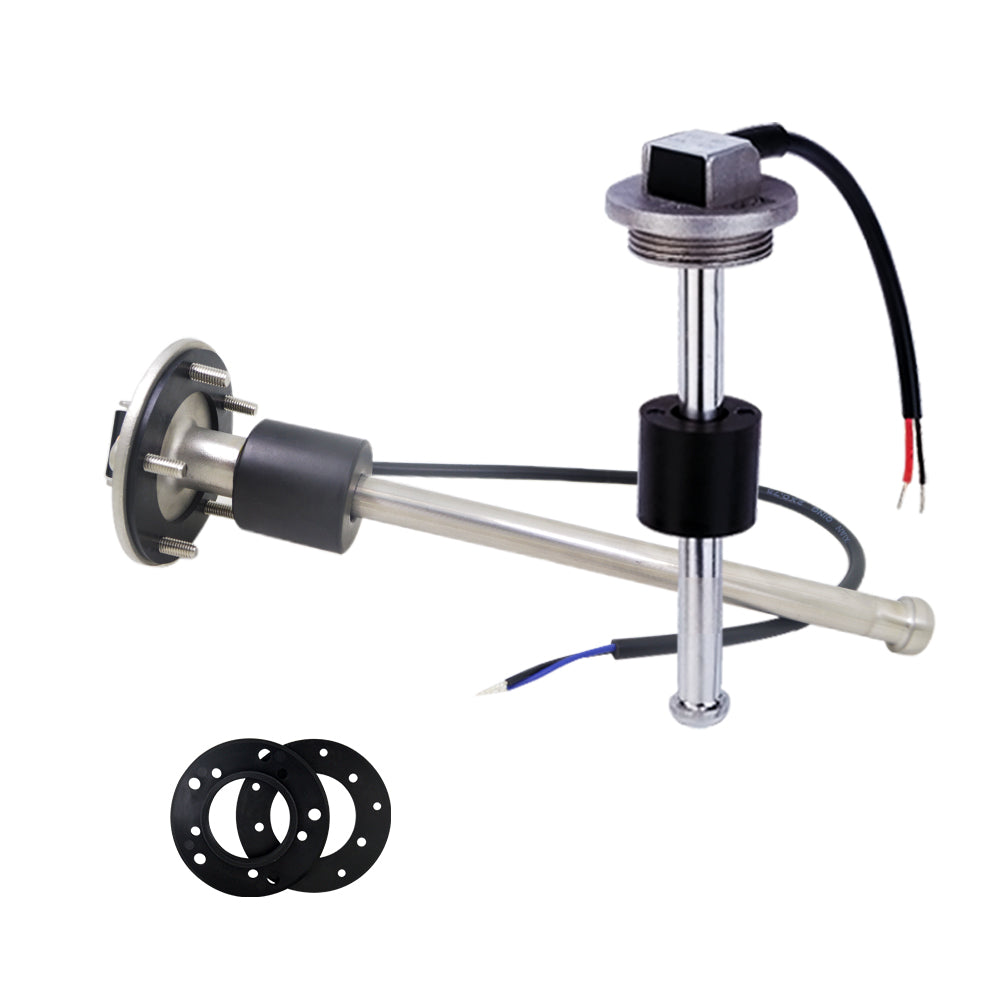

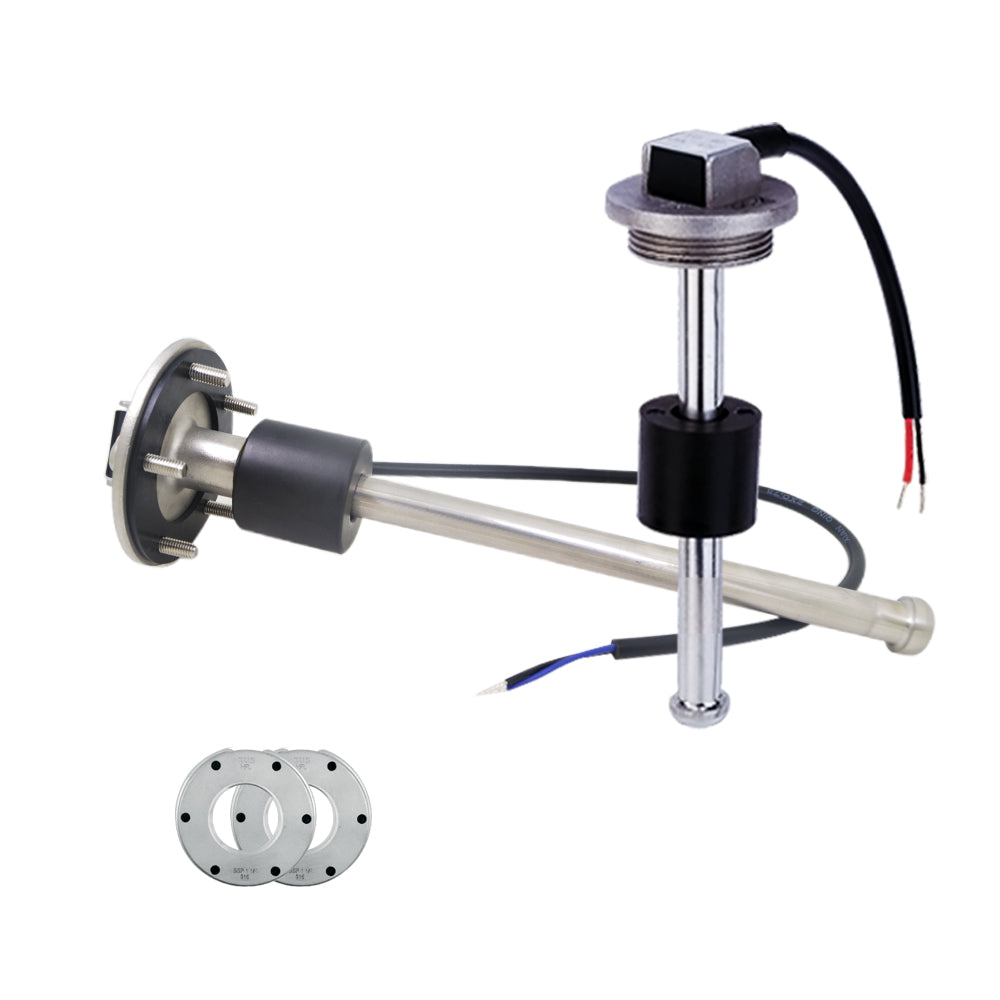

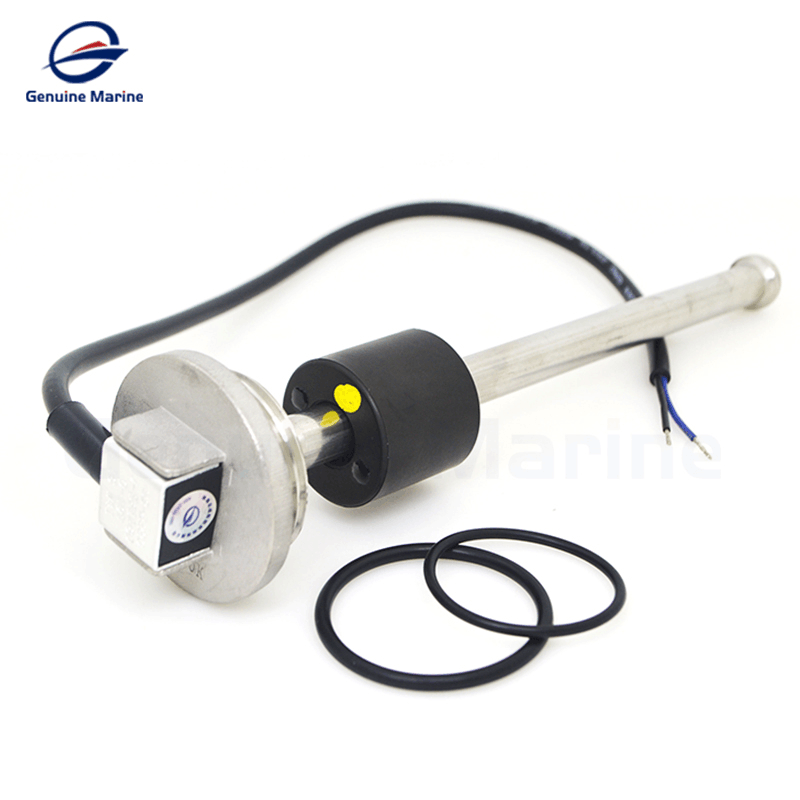

S3 Sensor：

Fuel and water boat fuel sending unit sensor：

Applying the principle of magnetic field to control the reed on-off switch, featuring long using life, anti-vibration, anti-explosion ect

Output signal: Resistance control signal, 240-33Ω

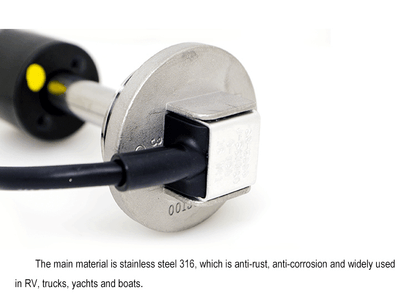

Materials: The main body is made of SUS316 or SUS304 stainless steel
Length range: 7.87inch / 200 mm.
Resolution hole: 52mm / 2.1 inch
Wire: PVC material
Assembly: BSP 1 1/4" thread twist-in, or NPT thread twist-in

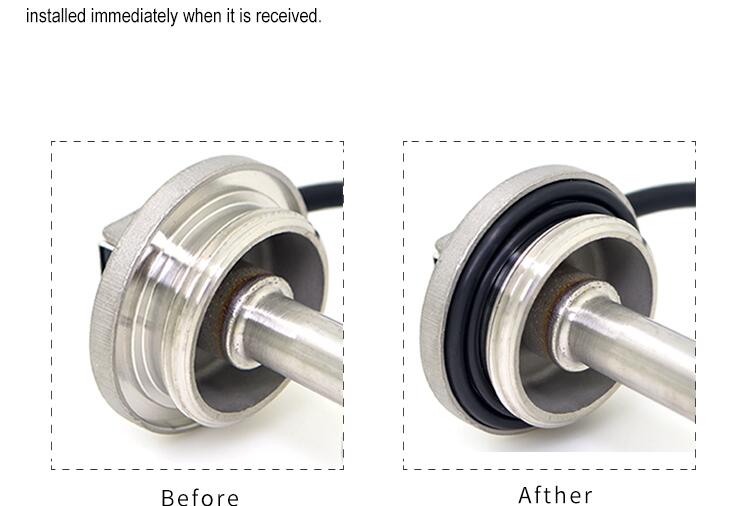

Accessories: O-ring
Precision range: 10-21mm
Operating temperature: -40°c -+85°

Package :1* level sensor

Does not contain mounting hardware, does not offer separate, either

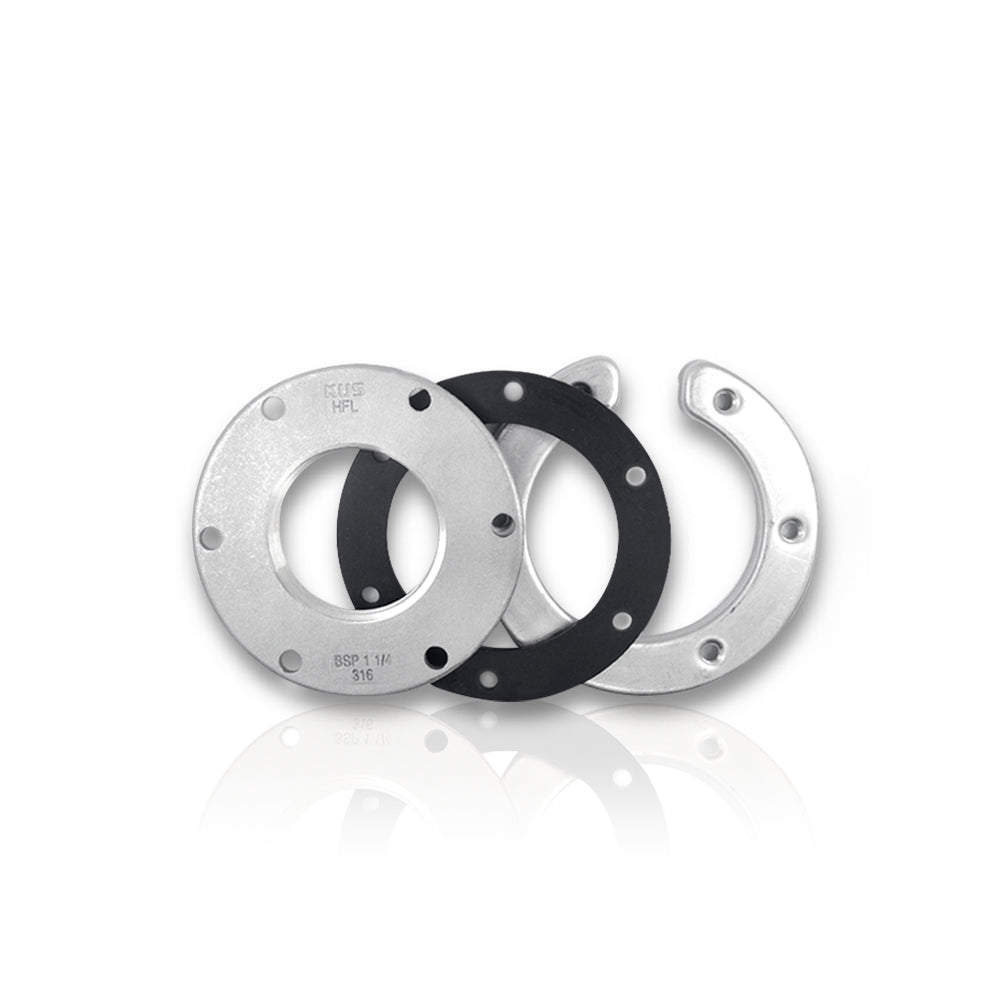

Flange：

Information：

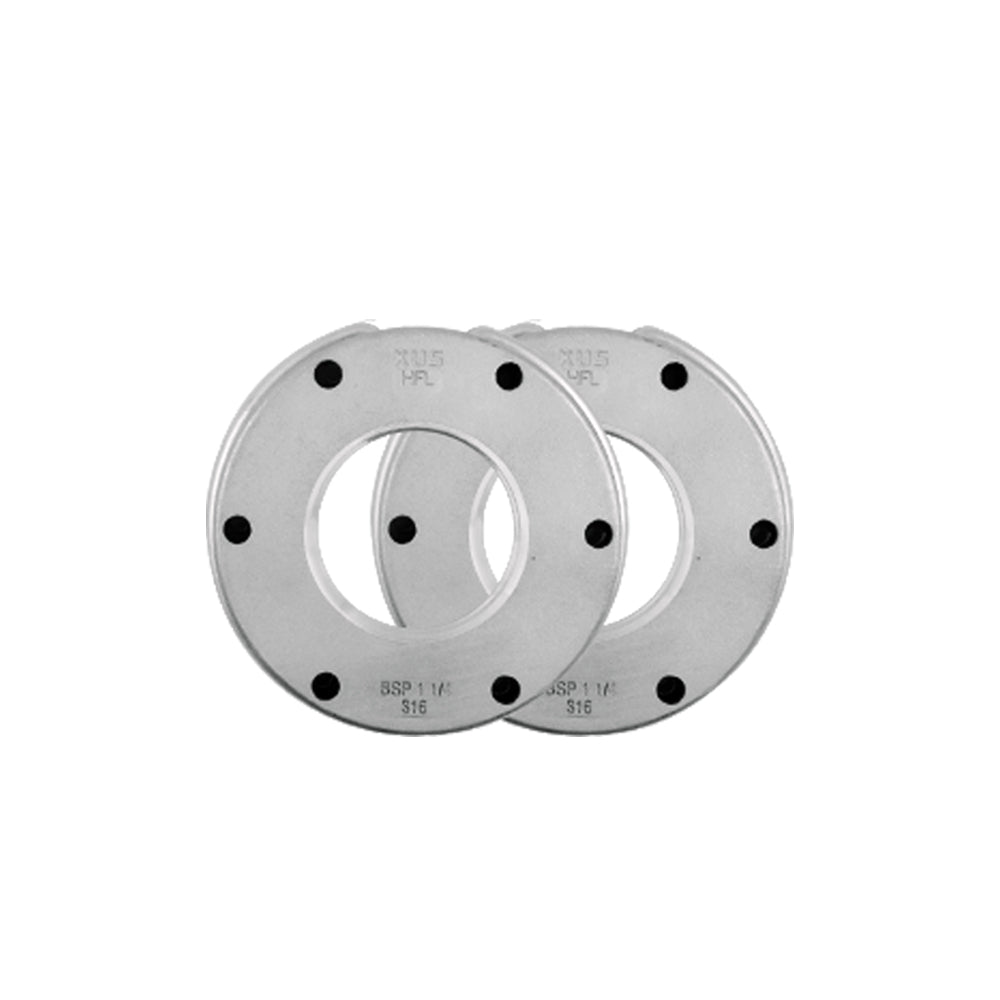

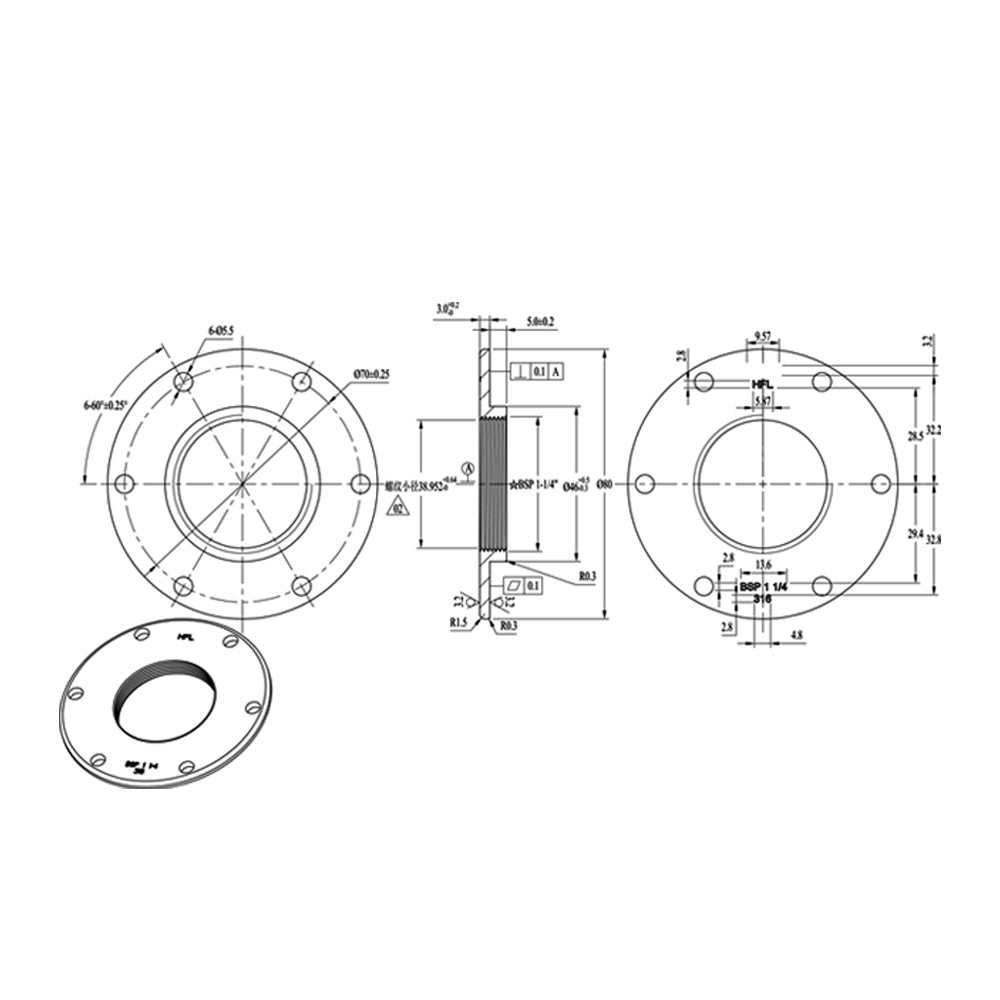

Name: Stainless steel flange
Color: stainless steel color
Material: 316 stainless steel

Remarks: Use with S3 probe.

Installation method:

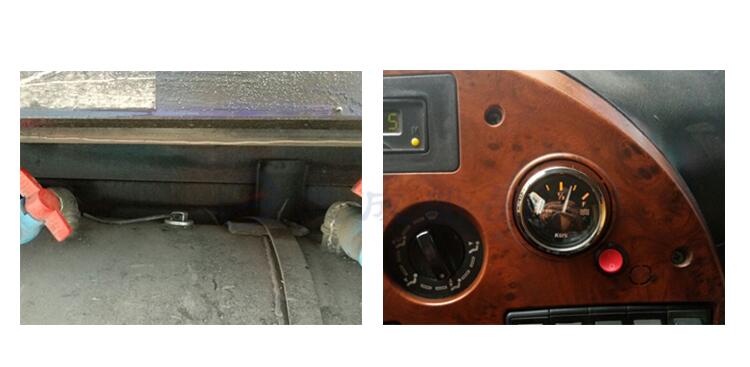

As is shown in the graph.

Package:
1* Flange
6* Screw

 We provide warranty, the warranty period is 1 year!!
